Generate Document

Introduction

Flowable allows to generate Word and PDF documents using templates powered by Aspose. This task takes a template and generates a document based on it at runtime, populating it with process or case variable data.

The Generate Document task supports:

Word templates using the LINQ Reporting Engine syntax for dynamic content including conditionals, loops, images, and expressions
PDF form templates with editable form fields that get pre-filled with variable values
Template variations for multi-language or context-dependent document generation
Output as PDF or Word, with optional PDF/A compliance for archival purposes

Configuring and Using the 'Generate Document' Activity

This guide describes the 'Generate Document' activity that is available both for BPMN and CMMN models. With this activity, it is possible to generate PDF or Word documents based on data gathered during instance execution or from external sources.

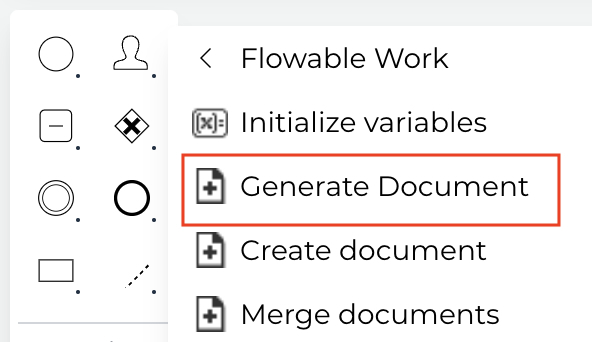

750 generate document activity

The features and capabilities of this activity are described below by working through a real example.

The Template Model

The Flowable Work Activities > Generate Document activity uses a Word document as a template that at runtime is used to generate a final PDF or Word document. This template is referenced by a Template Model.

Open Flowable Design and create a new app model. Afterwards, click the Create button and select Template for the Model type drop

Give the template a name and a key. For demo purposes, we'll use My template and myTemplate.

This will open up the template model editor. We'll use a Word document here, so the type can be kept on Document, which is the default. The alternative there, Text is for textual templates like for email bodies.

Click the Upload a file icon and upload or drop a Word template there.

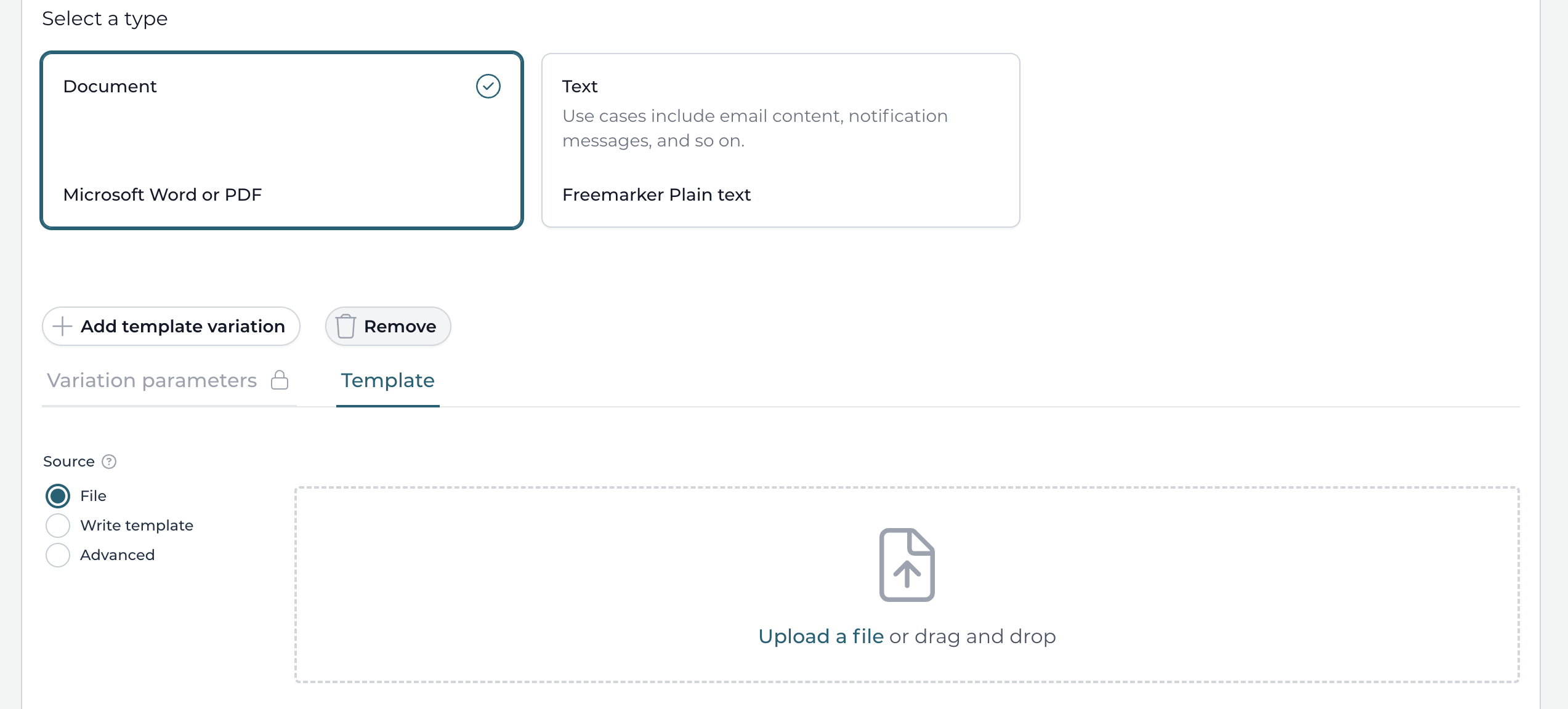

750 template editor

The Word document template looks like this:

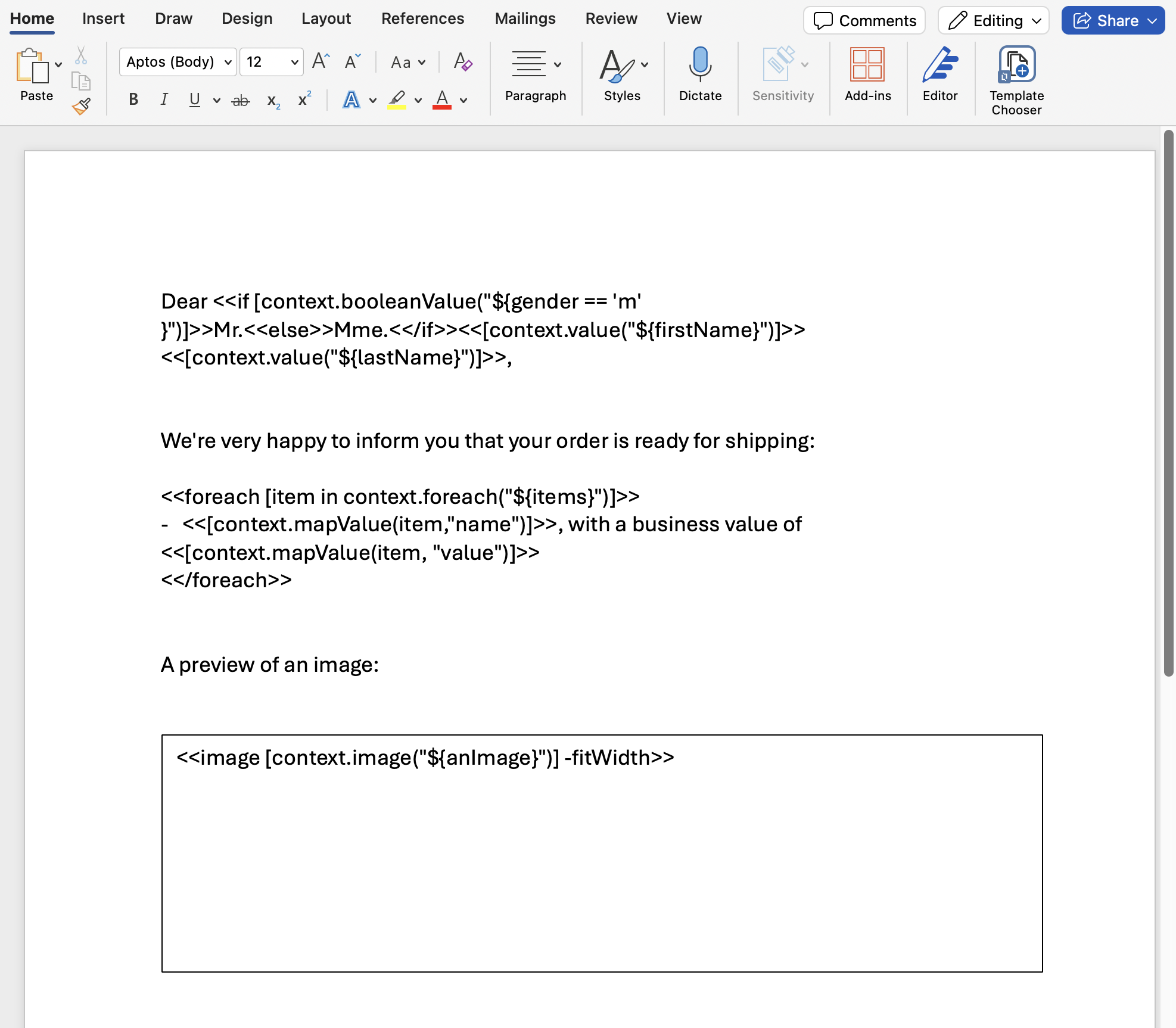

750 word template 01

Dear <<if [context.booleanValue("${gender == 'm' }")]>>Mr.<<else>>Mme.<</if>><<[context.value("${firstName}")]>> <<[context.value("${lastName}")]>>,

We're very happy to inform you that your order is ready for shipping:

<<foreach [item in context.foreach("${items}")]>>
-   <<[context.mapValue(item,"name")]>>, with a business value of <<[context.mapValue(item, "value")]>>
<</foreach>>

A preview:

<<image [context.image("${anImage}")] -fitWidth>>

More information about the language and syntax used here can be found at https://docs.aspose.com/words/java/linq-reporting-engine-api/.

Finally, save the model and go back to the app model.

The Process Model

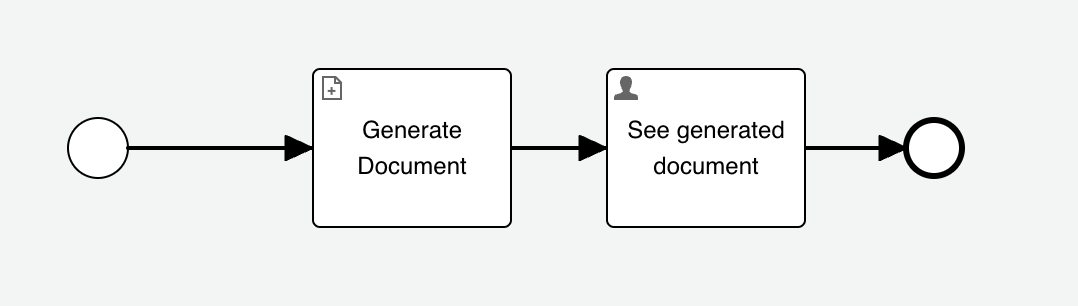

We can now use this template in a process or case model. Using Flowable Design, let us create the following simple process model:

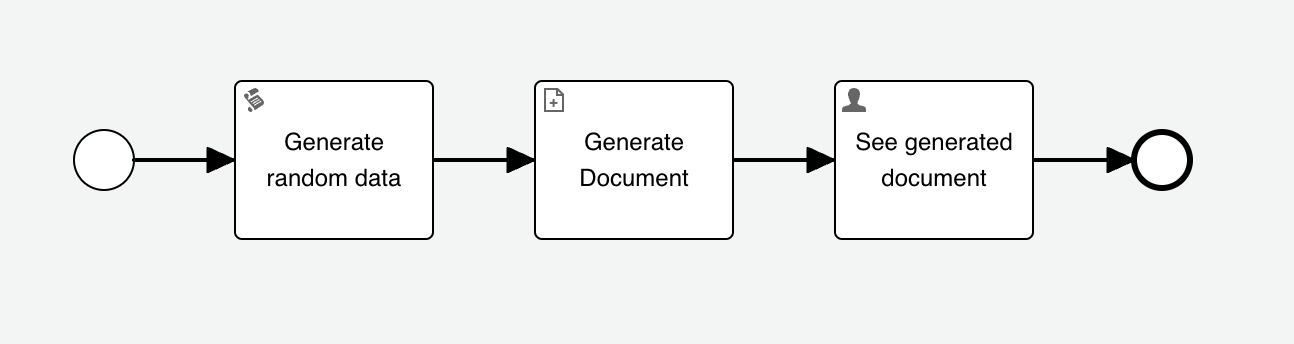

750 process example

This process also has a start form that looks as follows:

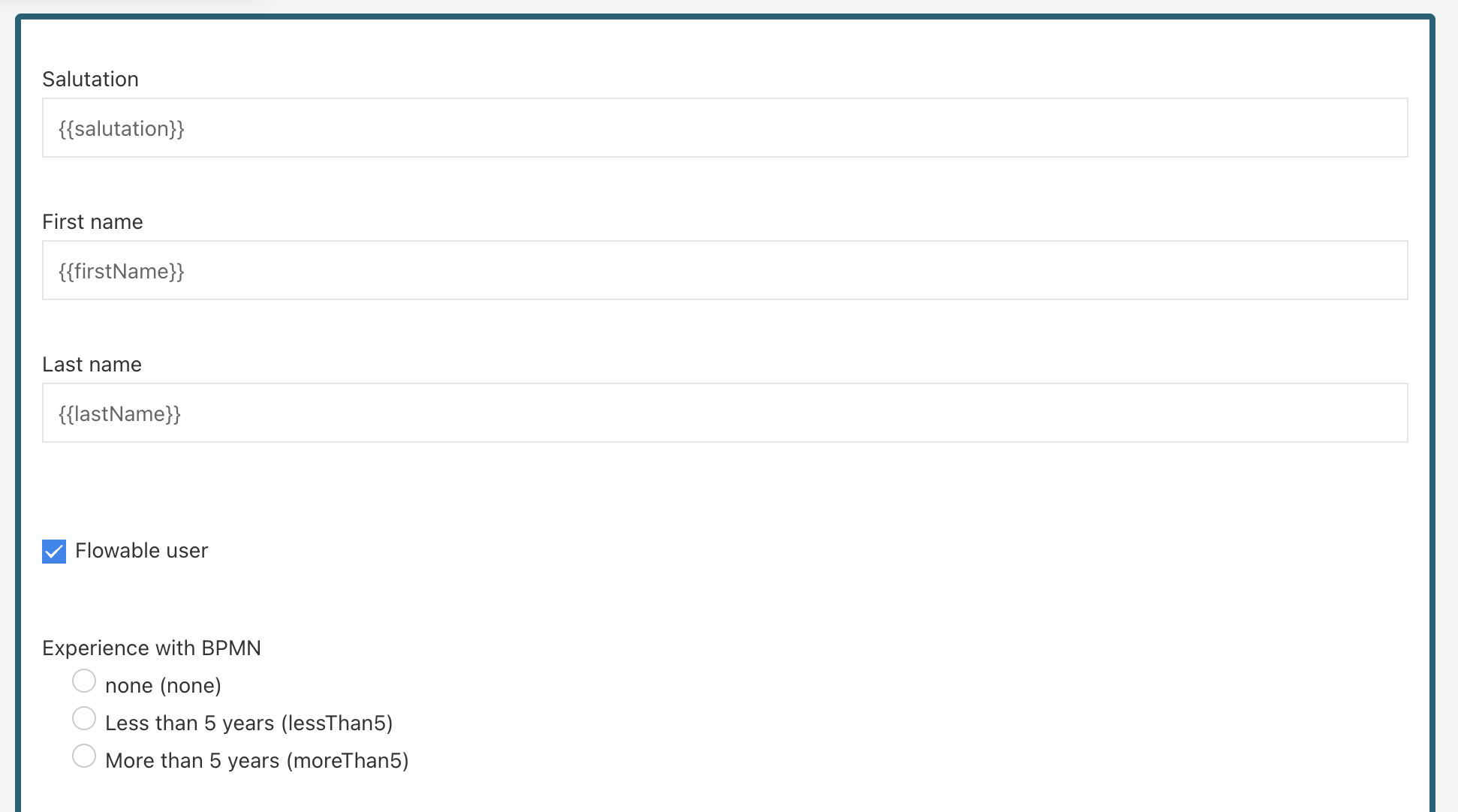

750 start form

Note that the start form has fields called firstName, lastName, gender, anImage. When executing an instance of this process definition, the form values are stored as process variables.

Such variables can be used in templates. Note that transient variables also work in case you do not want to store variables that are only useful for document generation.

Data for documents can also come from automatic service tasks. In this example, we are using a Groovy script task to emulate this:

def items = new java.util.ArrayList();

HashMap map1 = new java.util.HashMap();
map1.put("name", "laptop");
map1.put("value", 1234);
items.add(map1);

HashMap map2 = new java.util.HashMap();
map2.put("name", "desk");
map2.put("value", 987654321);
items.add(map2);

execution.setTransientVariable("items", items);

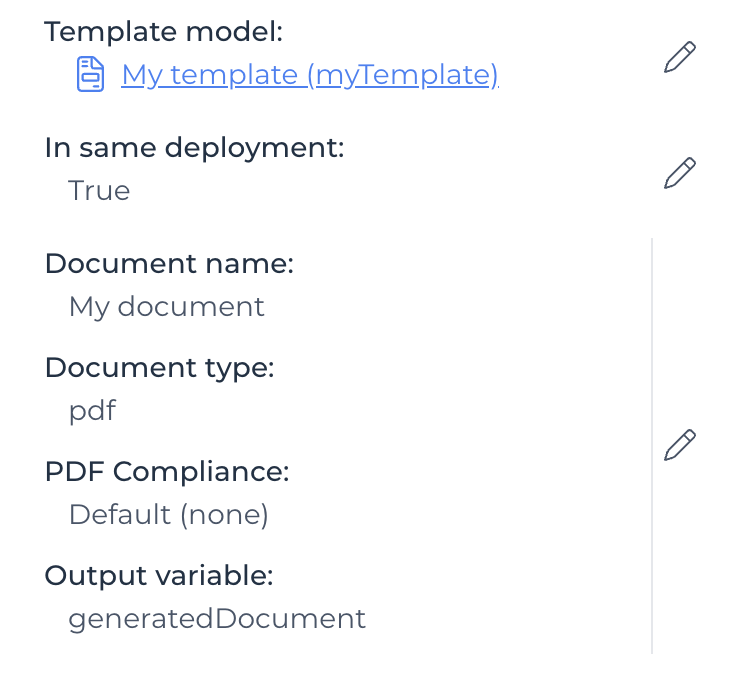

Now on to the configuration of the Generate Document step:

750 generate document configuration

The template model is the model we've created above. It's also possible to create a new model directly from this property.
The Document name is used to determine the filename of the generated document and this can be an expression (e.g., based on a customer name variable, a timestamp, etc.).
The Document type is either pdf of word and this determines the output format.
v3.16.0+ The PDF Compliance can be changed if there's a need for PDF/A compliance (e.g. for archival purposes). This option is only used if the document type is set to PDF.
The Output variable is filled in when the generated document needs to be referenced later (this is shown in the next step).

Finally, in the task at the end, we want to display the document. To do this, we attach a task form to the user task and use the document gallery form component with a value set to {{generatedDocument}} (i.e., the name of the Output variable above).

Running the Example

Deploy the process model by creating an app and publishing it in Flowable Design. Go to Flowable Work or Engage, click the Create new button in the Work menu, and select the deployed process.

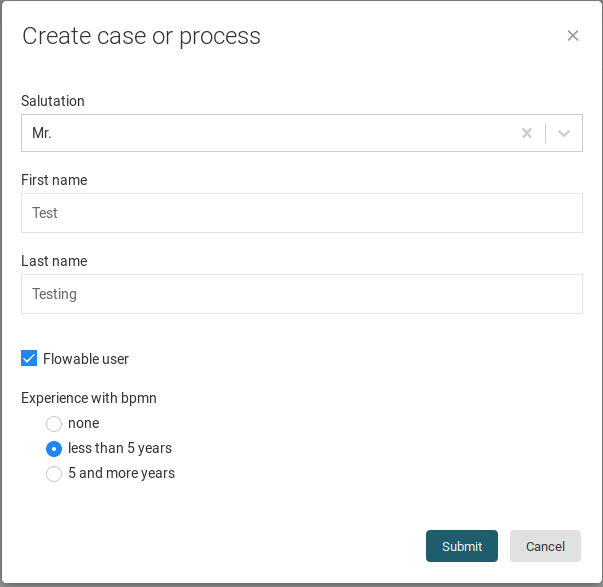

The start form is now shown:

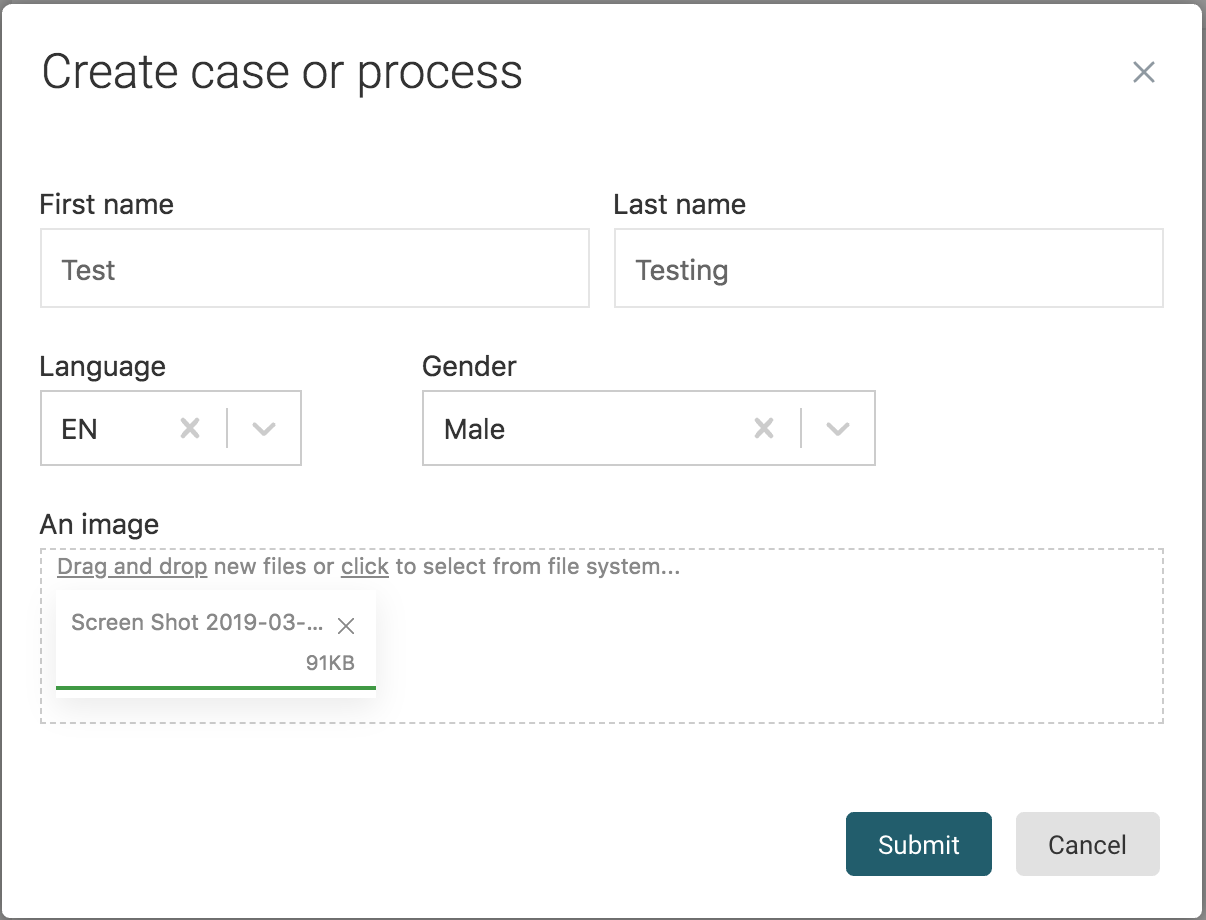

750 start form 02

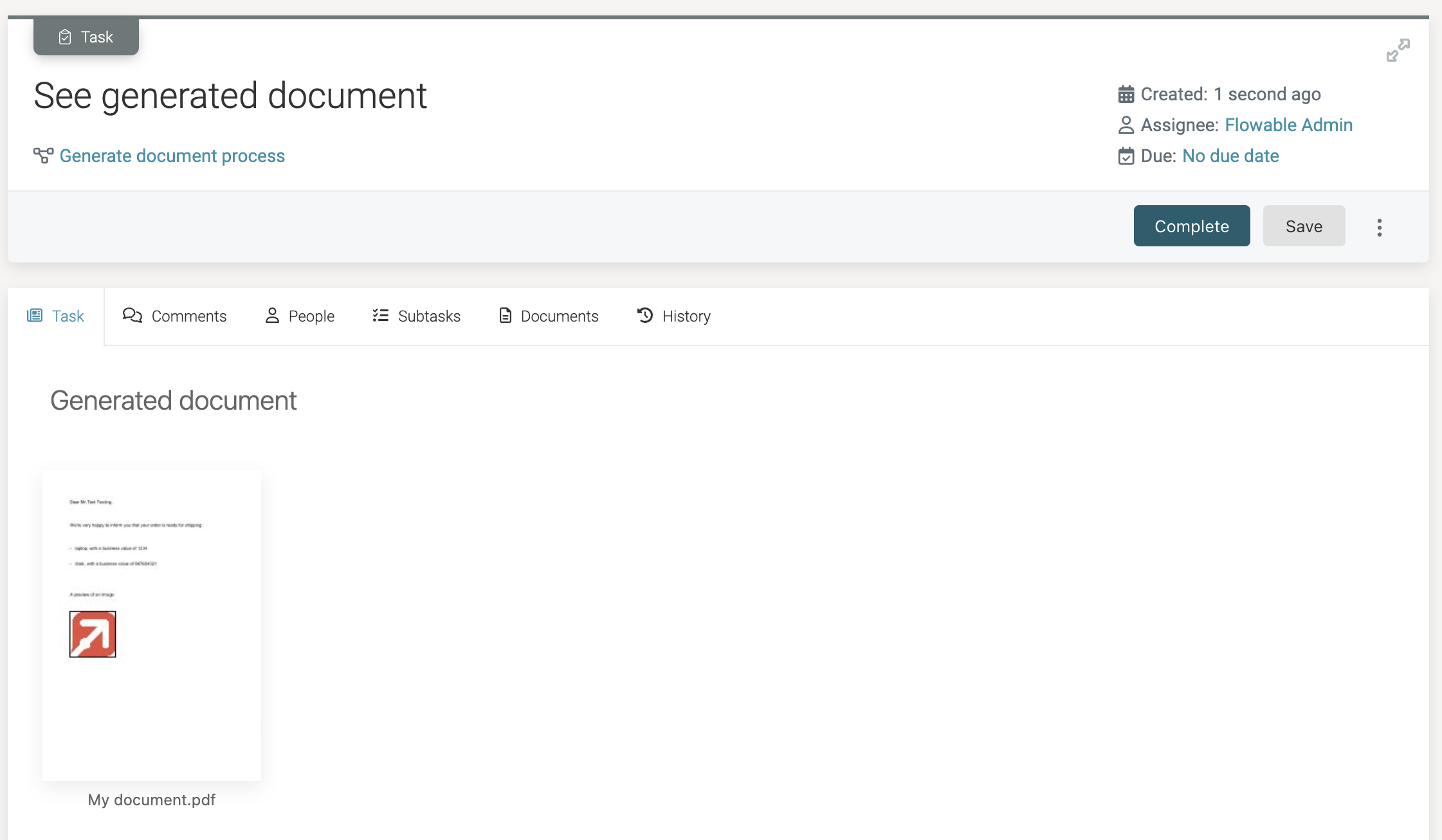

After clicking Submit, the process instance is started, and the document is generated. The process instance now waits at the user task before the end event. When clicking on the task, we see the generated document:

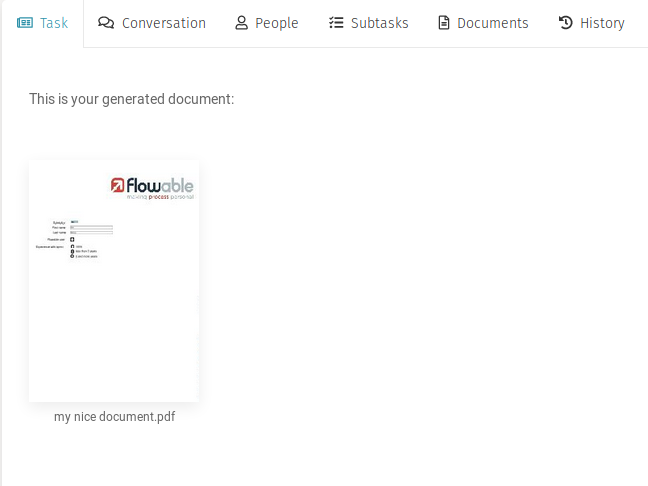

750 see document task

When clicking the document thumbnail, the document is seen full screen and downloaded.

Template Variations

In the previous example, we used one variation definition for the template. Let us now look at adding variations.

Variations allow a different template, depending on the context (more specifically based on instance variables), for the same template definition.

A prime example is the multi-language support for the same document. That is the reason why the start form above had a language field.

Let us build such a multi-language document generation now.

Open the template model create before.

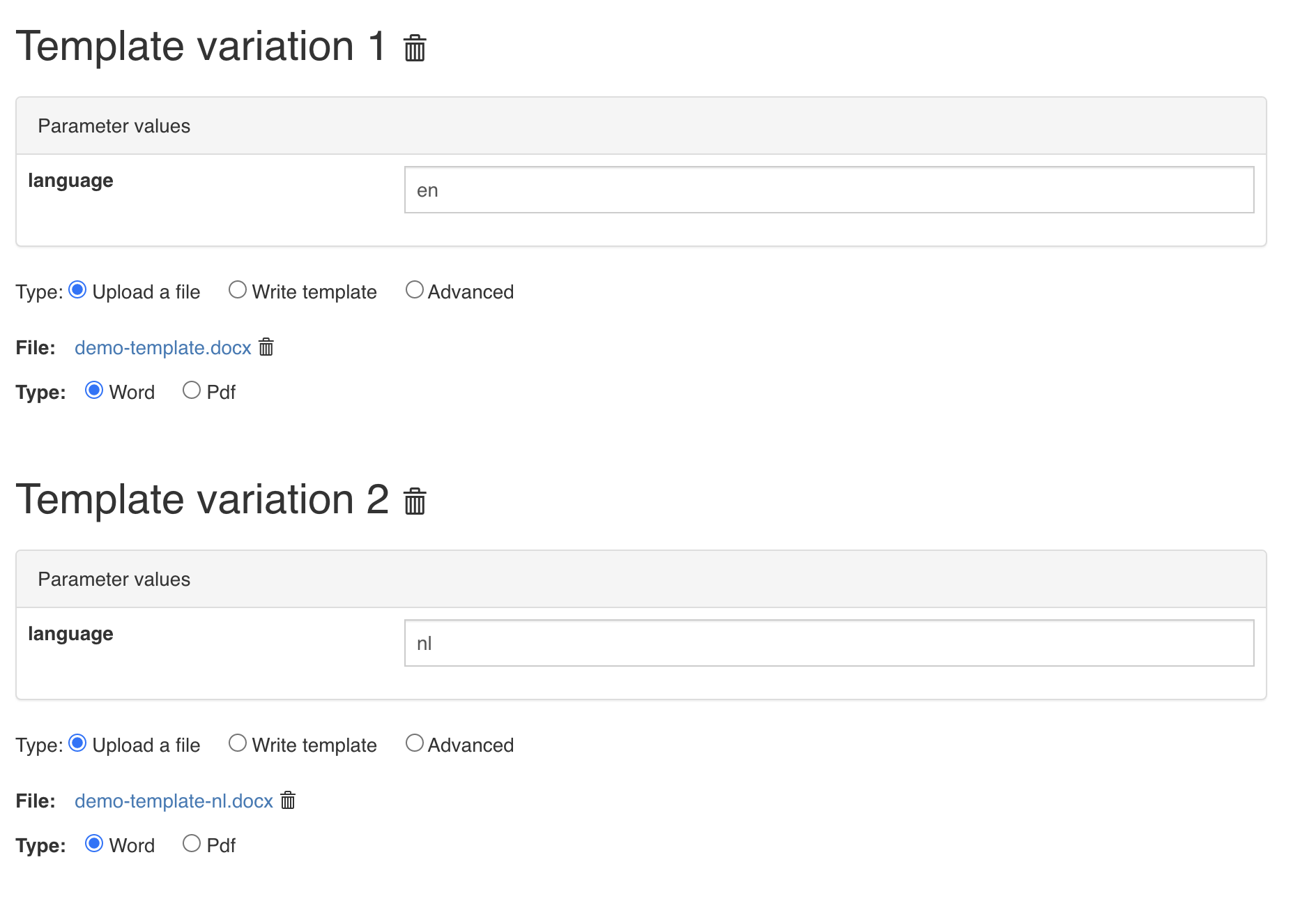

Click the Enable variations checkbox. This now shows a UI that allows filling in variation parameters. Add one parameter with name language and Default value en.

Upload two documents: one English template and one other language template:

755 enable variations

The en version is the same as above and the nl version is a version that is translated into Dutch.

What we're configuring here: when the language parameter is 'en', pick the first template and when the parameter value is 'nl', pick the other. The parameter will be a process variable at runtime in this case. The default is set to 'en' when the parameter is not matching.

note

Multiple variation parameters can be used and they are logically AND-ed together

The process definition is the same as the above. However, when now another language is selected, the translated version will now be used.

Advanced

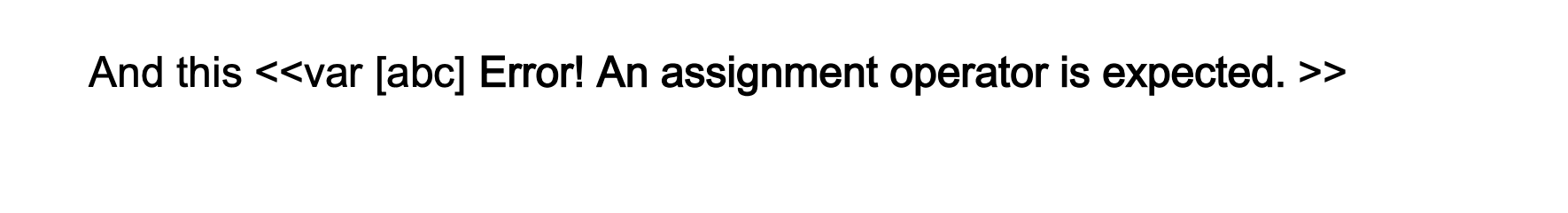

In the Word template a context variable exists with which to generate advanced output. This variable can be used in the template (as shown above).

note

The name of the context object can be changed by the Context object property in Flowable Design. The default value is context.

For a list of available methods within the context object checkout the context reference

Configuring and Using the 'Generate Document' Activity with a PDF Template

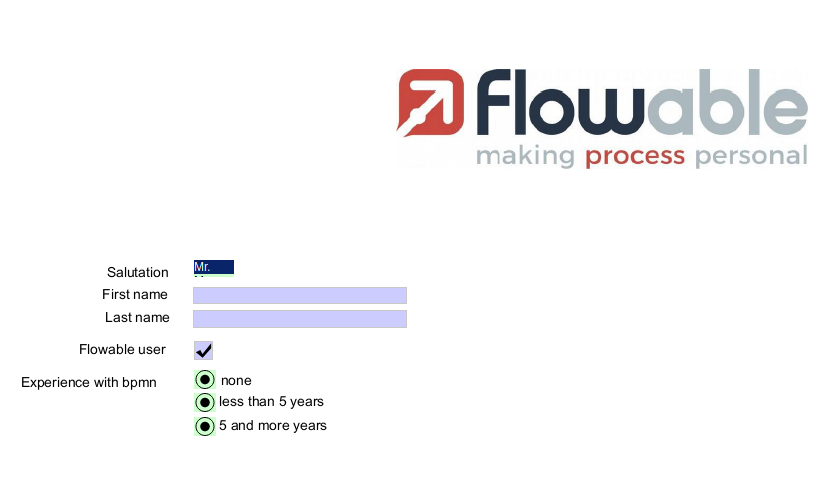

This guide describes the 'Generate Document' activity to generate pre-filled PDF documents from PDF forms. PDF document generation is similar to Using the 'Generate Document' Activity.

With this activity, it is possible to generate a pre-filled PDF form, based on data gathered during process/case instance execution or from external sources.

750 generate document activity
